Grain Bins from Barn World

Barn World now carries a large selection of Poly Grain Bins.

Poly Grain Bins are a fantastic feed bin design and are perfect for handling high moisture soybeans, corn, and granular materials. These feed bins are polyethylene bins constructed with high-density polyethylene so they won’t corrode or rust. and will always be attractive and clean.

Grain Bin Description

The interior surface is a very smooth two-piece construction that reduces bridging. There are no rivets and grain-clogging seams to contend with. The translucent polyethylene allows you to visually check the material line from the outside.

All of our plastic grain bins have a 22″ top opening with a hinged, vented filler cap and a pull rope that allows ground control for filling.

Feed Bin Collars

There are three different transition collars available for the slide valves– 90°, 45°, and 30° angles. (See Accessories on page 18.) The new style collar allows easier attachment to the bottom cone with little or no cutting necessary. Our slides feature a galvanized plate and guide system. Our auger boots will attach to any of our slide valves and handle 4″ or 6″ augers. The auger boots have a cleanout access cover.

The poly grain bins have a 16″ hole in the bottom cone and come in a variety of sizes:


Grain Bin Size Chart

The distance from the bottom of the lip of the bottom slide valve to the ground is 13″.
Size Specification Chart
Ton SizeCubic
Feet
Bushel
Capacity
Height
DiameterWeight

 .5 (bottom only) 30 24 78″52″  180 lbs.
.8403210′ 10″50″300 lbs.
1.575609′ 6″74″470 lbs.
2.513010411′ 5″74″500 lbs.
3.518014413′ 5″74″540 lbs.
4.522017612′ 6″96″800 lbs.
6.532526016′96″850 lbs.
8.542534019′ 6″96″950 lbs.


Features of the Poly Grain Bin

  • The .8 ton bin has 38″ of ground clearance to the slide valve.
  • The 1.5, 2.5, and 3.5-ton bins have 15″ ground clearance under the slide valves.
  • The 4.5, 6.5, and 8.5-ton bins have 14″ ground clearance under the 90° slide valve; and 11″ ground clearance under the 30° slide.

The Poly Bulk Feed Bins feature heavy-duty support frames with extra-large secure plates for more holding power. They have flat strap cross bracing for increased stability. The .5 – 3.5-ton units come standard with 4 legs; the 4.5 thru 8.5-ton units have 6 legs. The legs have large support tabs which can be bolted to concrete for added stability, especially on the larger units.

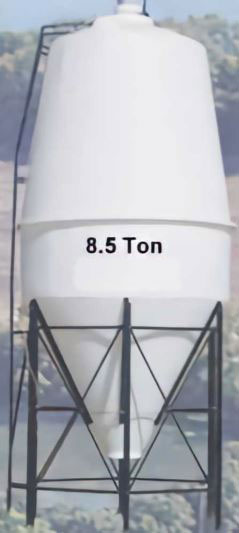

large poly grain bin picture

All of the plastic grain bins at Barn World have a sturdy ladder with a slip guard. It is braced securely to the top of the tank near the filler cap.

All hardware is supplied and the erection time is one-third of steel bins. The top cone section bolts to the bottom and then the legs are assembled before standing up.

Frames have a baked-on polyester powder coat finish that resists corrosion.

It is recommended that you use a concrete pad at least 5 1/2″ thick for our 4.5 ton thru 8.5-ton units. The foundation needs to be able to support not only the load in the bin but also high winds when the weather gets gusty.

Please visit BarnWorld today and change out not only the bins, but the wide variety of farm supplies, ranch supplies, and equestrian supplies made by American manufacturers. Our best-selling items are hay feeders, cattle guards, feed bins, saddle pads, mineral feeders, livestock scales, and many livestock supplies.

Sales@BarnWorld.com | (720) 238-2190 | www.BarnWorld.com

Assembled Feed Bin Diagram

poly grain bin diagram after assembly

Facebooktwitteryoutube

Farrier Supplies: Hoof Stands – Save your back!

Barn World

Hoof Stands from Barn World

At Barn World, we’ve come across a lot of great products and one that has stood out  with it’s ability and ease of use is the Hoof-It hoof stand.  Whether working on a large draft horse hoof, a standard horse hoof  or small hoofed animals such as ponies, smaller horse breeds and older horses, there is a hoof stand available to make the back breaking chore of trimming a hoof much, much easier.

The HOOF-it®  Hoof Stand, designed by farrier Steve Samet, features a new modern design which integrates the post and cradle to create a “two-in-one” unit. This combo design allows the user to easily switch from the standard hoof cradle to the draft cradle in order to work on and shoe a wide range of hoof sizes.

The cradle and post are covered with a shock-absorbing rubber material that provides a comfortable support for the horse, while the wide base unit provides added stability and safety for the user.

Please check out the instructional hoof stand video below to see just how easy working on a hoof can be with the hoof stand.

Hoof Stands

The HOOF-it® ‘All in One’ Hoof Stand

Hoof care the easy & comfortable way! Easy on the horse and the user, the Hoof-it® Stand gives you both the post and cradle integrated into one, innovative hoof stand. Do yourself a favor! Take the pain out of your back and knees with the New Hoof Stand from HOOF-it® Technologies

The HOOF-it® ‘All in One’ Hoof Stand, designed by Farrier Steve Samet, features a shock absorbing, integrated rubber cradle and hoof post into one easy to use unit.

The Hoof Stand provides a stable and safe support for the horse, allowing it to relax without putting all of it’s weight on you.

For additional safety and stability when working with the Hoof Stand try the following:

* keep on foot on the base unit when working with the Hoof® Stand

* do not leave the horses leg or hoof in the cradle or on the stand, when unattended.

Benefits for Farrier’s, Veterinarians and horse Owners who use the HOOF-it® Hoof Stand:

√ Easy to use “All in One” innovative, design integrates both the post and cradle in to one.

√ The innovative design of the HOOF-it® Hoof Stand dramatically reduces your risk of getting injured during hoof care tasks.

√ The HOOF-it Stand is ideally suited for use with all types of horses, including older horses that require special support and comfort during hoof care tasks.

√ The rubber cushioned Cradle fits different hoof sizes and hugs the hoof.

Let HOOF-it® Hoof Stand deal with the majority of the horses weight during any type of hoof care tasks, rather than your back or knees.

Visit www.BarnWorld.com today to see all of Barn World’s farrier supplies and livestock supplies.

Facebooktwitteryoutube

HS20 Certified Cattle Guards from Barn World

BarnWorld.com
Barn World Has HS20 Certified Cattle Guards for Public Roads

Barn World makes engineer-rated cattle guards for public roads and highways. They’re made from schedule 40 steel and come in a variety of sizes and designs to fit almost any project.

They can be built with different kinds of top rail depending on your needs. We have completely round top rails, square rails, I-beams and even c-channel supports to make rated cattle guards that are suitable for all public road crossings.

The HS20-rated cattle guards conform to AASHTO load rating requirements set by the type of truck and maximum vehicle axle load. They come with an engineer’s stamp and are certified to meet the highway load ratings so you can feel confident that you are getting the best heavy-duty quality required for your project.

Feel free to call Barn World for quotes or help with your installation plans.

Round and Flat Top Rail Cattle Guards


cattle guard with round top rails    cattle guard on concrete foundations

Cattle Guards for Public Roads require certification

These livestock barrier designs are used primarily for cattle containment but they can offer a strong deterrent to deer.  If placed side-by-side to form 12′ or more distance (in the direction of vehicle travel) deer are less likely to try and jump across.

Please note that we do not recommend cattle guards for horses, goats, or dogs as they simply are not effective. Horses can get a leg broken in them and goats, dogs, and other sure-footed animals will be able to cross the cattle guard.

Cattle guards can be made from different types of piping depending on your livestock control needs.  We can use round 3-1/2″ or 4-1/2″  pipes or make square top rail cattle guards. Typically the larger and more round the pipe that is used on top, the more of a deterrent it is for livestock.  A 4-1/2″ pipe will have a greater curve and thus provide a more unstable footing for a daring animal.  It will also have a larger gap between the pipes making it much more difficult to cross.  The smaller 3-1/2″ pipe will still keep livestock off of your cattle guard and will provide a smoother rider for crossing vehicles.  The same is true for the flat pipe.  It will offer a very smooth ride when crossing but isn’t the strongest deterrent.

Every HS20-rated cattle guard is certified to conform to the load rating requirements provided by the American Association of State Highway Transportation Officials or AASHTO.  They spell out the requirements and suitable load ratings for all highway-rated cattle guards.  All of our rated cattle guards come with the engineer’s stamp to assure that you’re installing an AASHTO-certified cattle guard.

For more information on cattle guards and cattle guard installation, please visit Barn World and give us a call at (720) 238-2190 and we’ll be glad to help.  Don’t forget, Barn World offers a large selection of livestock equipment and livestock supplies for all of your farm and ranch needs.

Barn World   (720) 238-2190  Sales@BarnWorld.com

Facebooktwitteryoutube

Saddle Pad Overview video

Saddle pad overview video

BarnWorld.com

Barn World



Barn World carries a large selection of saddle pads 5 Star equine as well as cinches and breast collars. We also have sheepskin saddle pads and covers for horse tack protection and equine style.  All of the cinches and breast collars we offer are made from 100% mohair and provide the maximum amount of comfort, performance and durability.

Our wool saddle pad selection is made from more virgin wool than any other 100% wool pad.  This allows for 3 times the compression protection than synthetic neoprene pads and gives more even weight distribution and impact absorption.  These 100% wool pads offer 4 times the wicking ability to eliminate moisture and heat buildup to provide riding comfort and protection for both horse and rider.  It it also allows for soft and durable easy cleanup.

When looking through a variety of saddle pad styles and types available I came across a neat little video from Equestrian Neightion, a nice play on words, on YouTube by Howcast.  It  gives a quick overview and basic overview of the different types of saddle pads available.  Check it out here:



Text:

Types of saddle pads

Saddle pads come in a variety of shapes and sizes and each has a specific use or function.  Selecting the right equipment will ensure that both you and your horse or pony will be comfortable and prepared to work.

Here are some common options:

Contoured or shaped pads – made of fleece or sheep skin, these pads are cut to the saddle shape and are used for horse showing and Hunter and equitaion classes.

Square pads – are popular for dressage, and are permissible for jumpers and cross-country.  Examples of these pads include aroma pad, an ideal choice for everyday riding.  This is an all-purpose pad used with both saddles and can be used in competition.

Baby pad – a lightweight every day schooling pad often used in conjunction with corrective pads.

Corrective pads – typically used in addition to another saddle pad.

Gel pad – reduces impact and shock to the horses back providing a cushion between saddle pad and horse.

Riser pad – creates added lift for the back of the saddle.

Half pad – provides protective cushioning, impact absorption and uniform weight distribution of the saddle.

Cashel pad – relieves pressure points on the horses back and withers.

Wither pad – provides back protection by relieving pressure on the spine.

Bareback pad – used for casual riding without a saddle.  The bareback pad allows for a comfortable area where the writer can sit.  The pad also provides a less slippery alternative that sitting directly on the horses back

Facebooktwitteryoutube

Cattle Guards

BarnWorld.com

 Cattle Guards:  A Cattle Guard for all your livestock control needs!!

Barn World carries rated cattle guards for public highways and road construction projects in addition to private property use cattle guards.

Cattle Guards – Engineer Rated

Rated Cattle Guards are available in four different certified load ratings. These are designed and engineered for use on public highways and for use with heavier than highway-legal off-road equipment.

The American Association of State Highway Transportation Officials (AASHTO) provides guidelines for cattle guards with maximum load ratings. AASHTO load ratings are suitable for all types of applications including heavy-duty logging roads.

AASHTO Design Specifications

Our HS20-rated cattle guards are made from schedule 40 steel and come in a variety of sizes to fit various cattle guard projects. We can alter the design of our cattle guards to use different kinds of pipe and rail depending on your needs. We have used round pipe, square rail, I-beam, and other types of rail and channel to make rated cattle guards that are suitable for all public crossings.

Barn World HS20-rated cattle guards conform to AASHTO load rating requirements by type of truck and maximum axle load. Our rated cattle guards come with an engineer’s stamp and are certified to meet the AASHTO load ratings so you can feel confident that you are getting the best quality cattle guard.

Barn World also carries economical cattle guards designed for private use:

Private Driveway Cattle Guards
It’s best to start with the load rating requirements for your project. Cattle guards come in several different rated and non-rated designs. For private driveway use, we recommend the basic cattle guard as the most economical option.

Basic cattle guards are heavy-duty structural .188 (3/16″) walled pipe with a diameter of 3.5″ or 4.5″ depending on availability or request. Note that the walls of the basic guards are thicker than schedule 40.

Standard cattle guards are another option for a private driveway or ranch use. The standard cattle guards are made with a new .113-walled steel pipe.

And to complete the cattle guard selection, we also offer a very versatile ATV Cattle Guard.

This unique design is built to be set directly in the fence line for easy 4-wheel access through your pastures. You just cut your fencing, set it in place, and attach the fencing back to the upright on either side of the ramp.

ATV Cattle Guard

Call Barn World anytime for help with your cattle guards project or quotes for delivery right to your job site!

720-238-2190 or request a quote at Sales@BarnWorld.com

Facebooktwitteryoutube

Mineral Licks and Mineral Feeders – essential for keeping healthy livestock

Mineral Feeders or Mineral Licks are very economical and low-maintenance means of providing essential minerals to your livestock.  Keep a steady supply of minerals in a mineral feeder or lick feeder for a healthy animal.

mineral feeders for cattle lick tank mineral feeder in a pasture

Below is a great article from Working Ranch about the importance of getting your livestock the minerals they need during the winter months. and the attention to the type of supplement quality and quantity.

Barn World also carries a large selection of feed troughs and grain feeders as well as solid mineral feeders and lick tanks to help ensure the proper nutrients are a part of the diet.
These feeders are an extremely effective way of making sure your livestock have the important nutrients they need at all times.

From ground mineral feeders like the Dura Life to the wind vane-style mineral feeders like the upright mineral feeder, Barn World has the tools to make sure your animals remain healthy all season long.

Make sure your cows are nutritionally ready

From Working Ranch

– by Gilda V. Bryant

– photo by Lucie Wiese


Minerals are important for herd health, reproduction and efficiency during winter. However, that is only part of the picture.  Extra protein and energy are vital during cold, wet weather.  Producers should also be aware of forage and by-product supplementation quality, as well as body condition scores.

“The challenge with minerals is there’s just no single answer,” says Rick Rasby, Ph.D., PAS (Professional Animal Scientist), Beef Extension Specialist, University of Nebraska (Lincoln).  “Think about minerals as part of a total diet those animals are eating.”

Rasby encourages producers to sample baled forages for moisture content, protein, energy, and mineral profiles.  Once a producer knows his forage quality, he can adjust the mineral package for his herd.  He says, “Use the mineral as a supplement to bridge the deficiency gap in those forages that are being consumed.”

He also recommends that producers analyze samples of supplemental feed such as gin trash, cottonseed, or distiller grains.

Many regions with ethanol plants have distiller grains available for the cow/calf sector.  Rasby says, “It’s an excellent feed, works well with forages, and is high in protein, energy, and phosphorus as well.”

Typically low in winter forages, phosphorus is a mineral that’s vital for bone and teeth development, and metabolic, neurological, and cellular functions in cattle.  It’s also one of the most expensive minerals to supplement.  According to Rasby, reducing or omitting phosphorus from the mineral package when feeding distillers grains can save money.  Get advice from a nutritionist or beef extension specialist about adjusting nutrient values when feeding these supplemental rations.

In addition to minerals, protein, and energy, utilizing body condition scores (BCS) is a management practice that cow/calf operators can implement regularly. Scores range between one and nine with one being a very poor specimen and nine being obese.

Rasby adds, “Having mature cows in condition score five at calving not only has an impact on what happens at calving but also on how quickly those cows are ready to rebreed after calving.  Those first-calf heifers probably need to be in a little bit better condition, say conditioning score six.

“Cows that breed early in the breeding season are in the right nutritional status.  Their calves are older at weaning and generate more dollars,” explains Rasby.

Is it right?

How can a cattleman determine if his mineral supplement and diet are on target? “Measure how they perform at calving,” replies Rasby.  “Are they good mothers?  Do they give enough milk? Does the calf perform well while it’s on its mother?  How quickly does the cow get ready to rebreed?”

Providing minerals is crucial to the Thomas Angus Ranch outside of Baker City, Oregon. Located in a valley between two mountain ranges, and flanked by sagebrush hills, owner Rob Thomas says, “We have long, fairly hard winters.”

He provides a custom mineral mix to his spring and fall calving herds, depending on forage analysis to fine-tune the supplement package.  Thomas says, “We increased levels of zinccopper, and selenium, the three minerals we’re deficient in.”

Beginning in November when snow is on the ground, he’ll feed alfalfa and grass hay.  He says, “We put up a lot of our hay, so we feed what we put up.  We test our feed to see what minerals we need.”

As a result of their efforts he reports, “We have healthier cattle, better immune response, fewer treatments, and a lower death loss.  We see increases in reproduction and gain and better feed utilization, which is important right now.  With extremely high feed prices, we want to utilize every bit of that feed, if possible.”

Across the country, Kevin Yon raises Angus cattle in the mild winters of west central South Carolina.  He provides three mineral mixes: summer, winter, and one for young growing livestock.  Yon says, “Our winter mineral program doesn’t differ drastically from our summer mineral program.  We include a higher level of magnesium to prevent grass tetany.  If all goes well we hope to have lush grazing on a limited basis, even in December and for sure in February and March.”

His winter diet includes stockpiled forages such as Fescue or Bermuda grass.  When possible, Yon likes to have rye grass or small-grain winter annuals on hand.  He explains, “It could be a combination of those and sometimes we’ll use a protein or energy supplement, which could be commodity by-products, such as whole cottonseed, dried distillers grains, or corn gluten.”

He analyzes feed, grains, and commodity by-products, seeking advice from a nutritionist to adjust his mineral program as needed.

“It’s important to have a year-round high-quality mineral program,” Yon advises. “That’s not always the cheapest bag of mineral, but it has the high levels that are needed for cattle in your area.  The cheapest bag is not always the best.”

Yon finds that his cattle have a more consistent consumption if he allows free choice at all times.  He says, “Know what the consumption rate should be and monitor that. In our part of the world, a covered mineral trough is important so the mineral doesn’t get wet, cake up and the cattle don’t eat it.

“As a producer, I see the benefit of minerals.” Yon explains, “The biggest for us is reproduction, cow herd efficiency, immune response, cattle health, and growth and development.  At our place, we try to feed a cow as cheap as we can because 60-70 percent of our annual cost involves nutrition.  We don’t see that minerals are the place to skimp.”

Thomas also recommends feeding minerals, saying, “Do it based on science.  Go ahead and get a forage analysis based on what you’re feeding and do that every time you get a new batch of feed, so you know what you’re feeding and what minerals you need to add to the ration.”

Rasby says, “To be competitive, you’re going to have to watch feed costs. How you put together feeding programs to meet your herd’s nutritional needs is going to be critical.”

To find a list of certified feed testing laboratories, check out: www.foragetesting.org.


PROTEIN AND ENERGY

“Minerals don’t do much if you’re not doing a good job of covering your water, energy, and protein needs for those cows,” advises Ken Bryan, PAS, and Ruminant Specialist with Cargill.  “A balanced diet is important because you have the added stress of environmental conditions like cold, wet weather, mud, and wind, which are going to increase the cow’s nutritional requirements.”

Adequate amounts of energy and protein are critical during winter conditions. “If a cow will eat twenty-four pounds of dry matter in forage, she’s going to get all the energy she needs,” Bryan explains.  “If that rumen is functioning well, she’ll break down the fiber and utilize that feed.  That’s your energy source.”

Protein, a much-needed nutrient in cattle diets, is composed of true protein and nonprotein nitrogen.  Protein in forages will gradually decline, providing less protein as winter progresses, with a higher percentage of fiber.  “The nasty thing about fiber is a high fiber, low-quality forage diet will restrict intake,” Bryan says.  “Now we’re going to supplement with a protein source.  The nice thing is, there are options for protein supplementation.”

“There’s the old standby, cake or range cubes, protein tubs or blocks and leftovers from oil seed products such as sunflower, cotton seed, or soybean meal and distillers grains from corn.  Look at the most economical way to deliver protein to the cow.”

Bryan cautions, “We’ve got to keep a minimum amount of fiber in that diet as we feed energy supplements.  We’re going to cause some long-term changes in that cow’s rumen… we’ll ruin her if we feed her like a feedlot steer.”

Facebooktwitteryoutube

Hoof Stands and Farrier Supplies from Barn World



    Barn World



Hoof Stands from Barn World



At Barn World, we’ve come across a lot of great products and one that has stood out  with it’s ability and ease of use is the Hoof-It hoof stand.  Whether working on a large draft horse hoof, a standard horse hoof  or small hoofed animals such as ponies, smaller horse breeds and older horses, there is a hoof stand available to make the back breaking chore of trimming a hoof much, much easier.

The HOOF-it®  Hoof Stand, designed by farrier Steve Samet, features a new modern design which integrates the post and cradle to create a “two-in-one” unit. This combo design allows the user to easily switch from the standard hoof cradle to the draft cradle in order to work on and shoe a wide range of hoof sizes.

The cradle and post are covered with a shock-absorbing rubber material that provides a comfortable support for the horse, while the wide base unit provides added stability and safety for the user.

The hoof stands are available in three sizes and in a combination stand**:

**These stands have been combined into the new all-in-one Blacksmith Stand

Please check out the instructional hoof stand video to see just how easy working on a hoof can be with the hoof stand.





The HOOF-it® ‘All in One’ Hoof Stand

Hoof care the easy & comfortable way! Easy on the horse and the user, the Hoof-it® Stand gives you both the post and cradle integrated into one, innovative hoof stand. Do yourself a favor! Take the pain out of your back and knees with the New Hoof Stand from HOOF-it® Technologies

The HOOF-it® ‘All in One’ Hoof Stand, designed by Farrier Steve Samet, features a shock absorbing, integrated rubber cradle and hoof post into one easy to use unit.

The Hoof Stand provides a stable and safe support for the horse, allowing it to relax without putting all of it’s weight on you.

For additional safety and stability when working with the Hoof-it®Stand try the following:

* keep on foot on the base unit when working with the Hoof® Stand

* do not leave the horses leg or hoof in the cradle or on the stand, when unattended.

Benefits for Farrier’s, Veterinarians and horse Owners who use the HOOF-it® Hoof Stand:

√ Easy to use “All in One” innovative, design integrates both the post and cradle in to one.

√ The innovative design of the HOOF-it® Hoof Stand dramatically reduces your risk of getting injured during hoof care tasks.

√ The HOOF-it Stand is ideally suited for use with all types of horses, including older horses that require special support and comfort during hoof care tasks.

√ The rubber cushioned Cradle fits different hoof sizes and hugs the hoof.

Let HOOF-it® Hoof Stand deal with the majority of the horses weight during any type of hoof care tasks, rather than your back or knees.

Visit BarnWorld.com today to see all of Barn World’s farrier supplies and livestock supplies.
