Sheep and Hog Scale System

Description

Package includes 18" x 55" aluminum platform scale, crate assembly, stainless steel digital indicator, rechargeable battery, AC adapter (charger), pre-calibration, one-year warranty. Capacities: 500 lb. Shipping is estimated based on weight and location.

Specifications

• Accuracy- Provides consistent accuracy within 0.5% and comes complete with a digital indicator and "motion control" software.
• Portable - All aluminum construction for light weight 110 lbs. Easy to relocate
• Easy open and close gates
• Low Profile- Small animals can easily step onto the scale avoiding animal stress.
• Durable- Complete with stainless steel, hermetically sealed load cells and a stainless steel, NEMA 4X battery-powered digital weight indicator.
• Economical to Own- Low purchase price, virtually no maintenance cost, and economical replacement parts are readily available.

Features

• Construction - Aluminum with non-skid platform surface protects animals and handlers from accidental falls. Gates can be easily lifted with one hand reducing back strain.
• Overload Capacity- Capable of withstanding 1,500 pounds of weight without damaging the scale.
• Easy Assembly- No installation costs. No moving parts that require maintenance or adjustment.
• Stainless Steel Junction Box- allows easy connection to the MTI500WB indicator.
• Weight Sensor- The AHS5-00 uses four high-quality stainless steel, hermetically sealed load cells for superior performance and durability. These load cells can be submerged in water without failing.
• Indicator- The Model MTI-500WB provides 5,000 divisions of certified accuracy with a back-light LCD display. Comes complete with RS-232 serial port for computer or printer connection. Includes rechargeable battery and AC adapter which acts as battery charger when plugged into indicator. Also includes MTI's proprietary "motion control" software which allows you to obtain a stable weight even if the animal is continuously moving on the platform.

Specifications:

• Capacity- 500 lbs
• Readability- 0.2 lbs.
• Accuracy- 0.5%
• Dimensions- Scale: 18" x 55" -- Pen: 22" x 60" x 38" -- gate raises 48"
• Shipping Weight- approximately 150 pounds

Pictures of the Scale

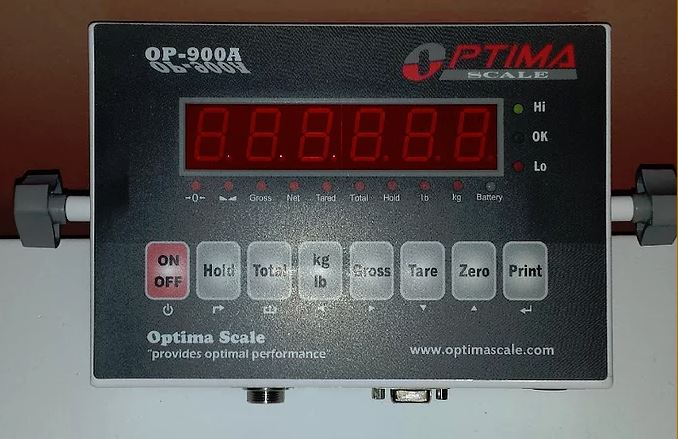

Hog Scale Display

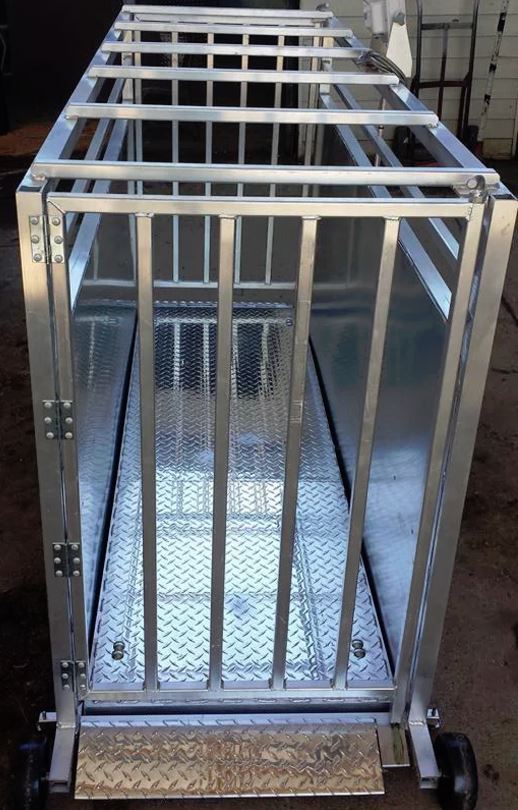

Animal Scale with closed door

Hog Scale swing wide entry door

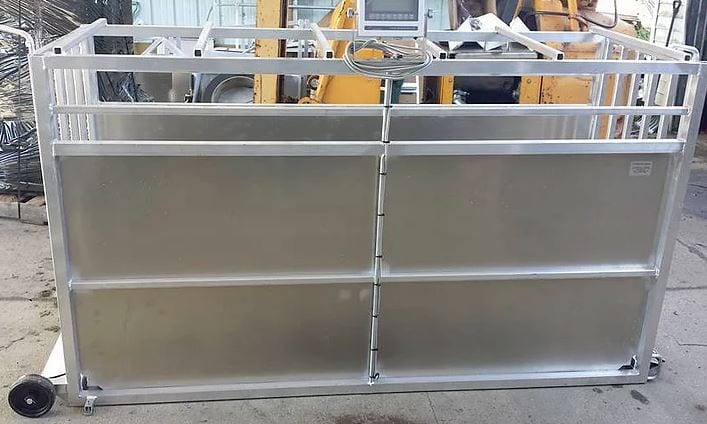

Back of the Sheep Scale
