The Covered Hay Feeder - O`Neill Bale Feeder - Discontinued

This product is not available for purchase.

The upright horse hay feeder is easily loaded through the swing doors on the front or back and the cover provides protection from the elements.  For long-lasting durability, it has a powder-coated finish and punched metal bottom to prevent water retention and stale hay.  Being a sturdy and solid horse bale feeder, it is made with a hefty weight of 370 lbs and is a great horse hay feeder in the sun, and rain.

THIS COVERED HAY FEEDER HAS BEEN DISCONTINUED - Please see our other horse hay feeders here!



This product is not available for purchase.
This product does not ship free



Covered Round Bale Feeders for Horses

The Problem

We came up with the idea of a Round Bale Feeder for Horses due to the frustration with wasted hay during the winter feeding and the unavailability of feeders designed specifically for horse safety. Conventional hay feeding techniques are inefficient.

Wasted Hay
Round bales of hay weighing up to 1200 lbs are generally carried by tractors or skid steer loaders with front-end spears and set in open areas for horses to feed. The problem with this application is the amount of wasted hay from ground moisture, rain, snow, dirt, mud, and animal waste that mixes with the hay over a short period of time. The hay also becomes marking territories for dominant horses and beds for others, wasting upwards to 50% of its intended use in a matter of a few days, if not hours. At a cost of $30 to $50 per roll, hay bales not lasting four days per four horses through the winter become very expensive.

Lack of Safety for Horses
Most round bale feeders that are commercially available today are designed with the waste issues as noted above but are for livestock, not designed with the nature of horses in mind. Horses are herd animals and rely on safety in numbers. They are easily spooked and move quickly with explosive force when surprised by noises, smells, strong winds, or other horses; often they jump without looking, coming down on sharp edges or other ground-placed feeders, or they get entangled in other feeders an attempt to avoid being kicked or bitten.

The Solution...
...was to make a Round Bale Hay Feeder for Horses that was both efficient and safe. By using a tubular steel design with no sharp edges, the feeder minimizes the dangers of cuts or serious injuries. The height of the feeder facilitates feeding and eliminates rubbing off the mane of horses (as is the case of some of the other feeders that require horses to place their heads in small openings, a potentially dangerous situation).

Because horses naturally paw at their food, the height of our Round Bale Hay Feeder helps protect their legs from possible injury. And since horses are naturally grazing animals, what falls out of the feeder during feeding will be eaten first, leaving little waste.

O Neill Bale Feeder Unit with Legs

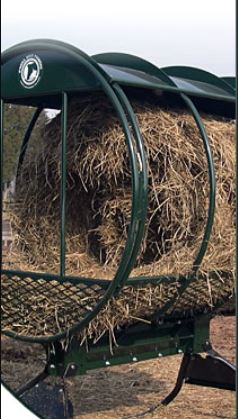

side view of the covered hay feeder

O Neill Bale Feeder Unit without Legs

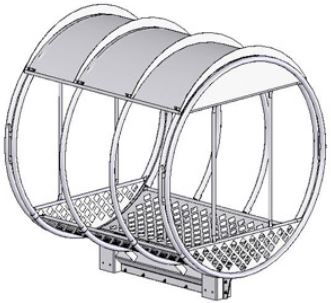

top of the covered hay feeder

O Neill Bale Feeder Legs Only

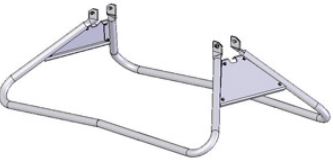

covered hay feeder leg diagram



horses eating from the covered hay feeder in the snow
Still have questions about this product?
Ask your question here

Questions

Question:

hat is the shipping cost to: Sparks, MD 21152


W
Answer:
Thank you for your interest. We will have a shipping quote for you shortly.

Question:
Please let me know how much the freight would be for NH zip code 03584
Answer:
Thank you for your interest in the O'Neill Bale Feeder. I will have a quote shipping for your review shortly. If you have a questions in the meantime, please let me know. Thank you, Robert Moore Sales@BarnWorld.com 720-238-2190
Question:

Your Q&A says it will hold up to an 800lb round bale. Most 4X5 round bales are around 1100 pounds. Will it hold them? Thanks Ray


Answer:
This covered hay feeder will handle an 1100 lbs bale as long as it is no larger than 5' in length.

Question:

You mentioned being able to transfer the round bale by rolling off the truck bed. Can you do the same with a flatbed that has a deck over the wheels or would the trailer be too low? Thank you.


Answer:
That would work to load as well. A horse trailer would be too low, however.

Question:

How heavy of a round bale will it hold?


Answer:
You can put a 5' round bale in this unit. It will hold up to a 1,100-pound, 5' round bale.

Question:

What is the paint finish of this product and is the hardware stainless steel? Also how long is the warranty and what does it cover?


Answer:
The paint finish on this is a powder coat polyethylene product. It has a full one-year warranty on manufacturer defects and workmanship. We have many of these units for the horseman and have had wonderful comments regarding the safety of this unit for their horses.

Question:

We have a sandy corral - would this be stable? The legs do not look substantial enough. On the ONeil site, they show one mounted on posts. Is there a kit to do that with? Thanks!


Answer:
Actually, the support base is very stable and would work very well even in a sandy corral. However, you could order the feeder only, and one would only have to purchase the square posts from a local lumber yard and just insert them into the square holes under the base of the feeder and bolt it. It is very easy to do.

Question:

Looks like a good idea, just wondering if anyone/any storm could tip it


over.
Answer:
Thanks for your inquiry and question on the ONEILL bale feeder. We have shipped these all across the U.S. and have not had any one report that one has tipped over. I would doubt that a "person" could tip it over, however, with strong winds at times of over 60 MPH, many things can tip over as with "gusts", one just never knows how they "swirl" and with what velocity. So, I would not attempt to tell anyone, that a strong wind couldn't turn it over. I would say, it would take a pretty strong one!

Question:

My large bale arrives in the back of a pickup so it will roll out. How would I load into this bale feeder?


Answer:
Many just push it out of the pickup into the bale feeder, but it depends on how heavy the bale is. If the bale is quite heavy, you may have to use a tractor with forks or a small bobcat.

Question:


I am interested in the O`neill Bale feeder BUT would like the measurements of the inside. I have in mind putting square bales in this. Will it hold 10 (80 lb) square bales?


Answer:
The inside diameter is 5`-5" and is 5`-4.25" long. It should hold 10 small square bales.

Question:

How far apart are the openings that the horses put their heads through? How high is it to the bottom of the mesh that the bale sits in? I have foals using this and want to ensure they can reach the hay.


Answer:
The side openings are 19" wide. The end door center opening is 23" wide. The openings can be either of the following heights: 47 3/4" to the bottom of the opening and 85" to the top OR it can be lowered 6 1/2" 41 1/4" to the bottom of the opening and 78 1/2" to the top

Question:

What is the size of this feeder's legs and barrel?


Answer:
The feeder is 5`-6" in diameter. The legs are made out of a 2" diameter tube with a 12ga [0.109"] wall.

Question:

I have draft horses is this heavy-duty enough to stand up to that kind of use?


Answer:
Yes, it will be fine for your draft hoses.

Question:

Does it have hinges so you can open the side or top and drop in a bale with a two-prong side hauler?


Answer:
No, it only has the round doors on each end that swing open. Place the bale in a pickup truck bed, back up to the unit, and push the bale into it, or get a single-prong attachment for the hauler.
