This auger box attaches to the bottom of the Poly Slide Valves (click here) and allows the auger to unload from the bottom of the Poly Grain Bins (click here). They are built to accept the in-brand Poly Bulk Feed Bin Augers with 3.5" inch, 4" and 6" diameters. It includes the clamp around the discharge tube as shown. Please chat below, call, or email for a shipping total to your address today! The auger box for the Poly Bulk Grain Bins is designed to attach an auger to the bottom of the bin so you may mechanically unload the feed bin quickly and in large quantities. It's especially useful for filling vehicles such as trailers, tractors, or tractor buckets when transporting grain to feeding areas on the farm and ranch. A slide valve is needed to connect this auger unloader to the poly boot that attaches to the bin Below are pictures of the auger box by itself and shown attached to a slide valve for display purposes. The top opening measures 10-7/8" x 6-7/8".
Select Your Auger Size Below
Dimensions of the outlet side of the Auger Boot
Grain Bin Auger Un-loader Box picture

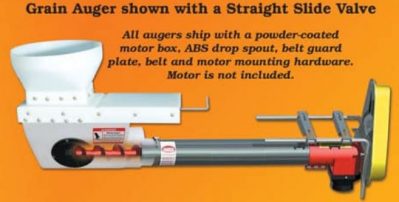

Feed Bin Auger Attached to Slide Valve

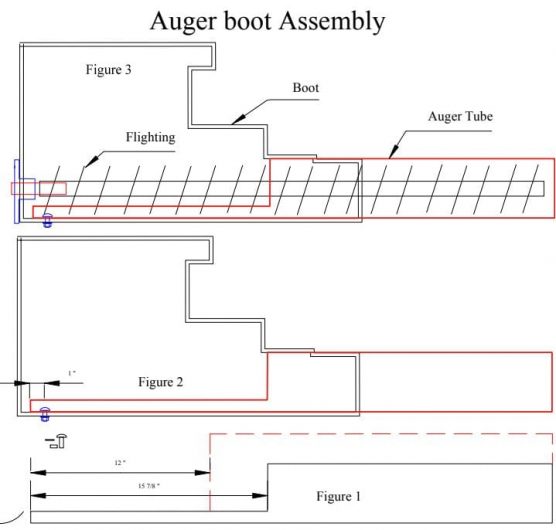

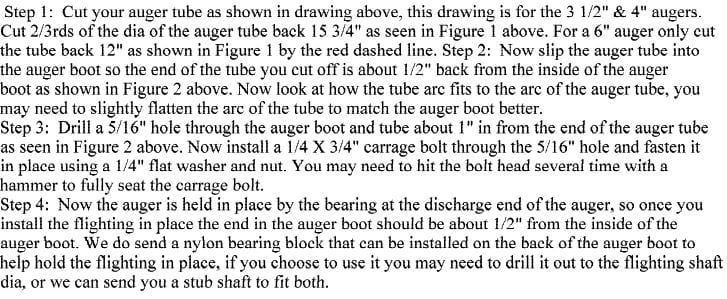

Auger Boot Assembly with Auger
Auger Unloader Box
This product does not ship free
Note that the slide valve is needed to connect the unloader to the collar. The collar attaches to the bottom of the bin and is available in different cuts to create the desired auger angle. They are available in horizontal, 30-degree, and 45-degree angles.
Here is an example of an assembled auger for discharge. The top collar is horizontal and attaches to the bottom of the bin. The slide valve is then attached to the collar and controls the flow of grain to the box. The auger box is connected to the slide valve and collects the grain for the auger to grab and move to the discharge end of the tube.

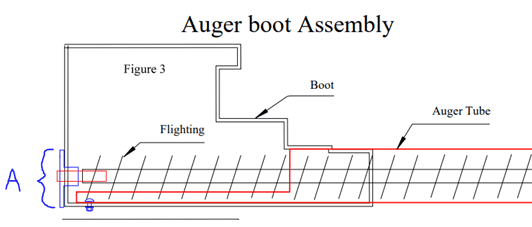

The un-loader box has a nylon bushing (in blue, labeled 'A' below) or bearing stub for the auger to rest on.
