Horse Rack and Trough Feeders

DIMENSIONS FOR THE 8' LONG HORSE RACK AND TROUGH FEEDER

These rugged 16 gauge steel horse hay feeders are designed to be used outdoors year-round. The large mud legs and 1-7/8" frame are finished in a gray enamel and the trough below the hay rack catches loose hay and allows you to feed supplements if need be. Below are the dimensions for the 8-foot-long equine feeder:

• 45" wide and 71-1/4" tall
• The trough is 36" high
• Gray enamel finish
• Pre-drilled trough drain holes
• Steel Frame:  1-7/8" 16 gauge
• Hay Rack:  1", 16 gauge round tubing
• There is an 11" gap between the last hay rack bar and the end of the trough

Hay Rack Inside Dimensions - 8' Feeder

• Length 74''
• Width 4'
• Depth 31''

Outside Dimensions for 8' Cattle Combo Feeder

• Length 8'
• Width 4'
• Height 6'

Pictures of the hay rack and trough feeder

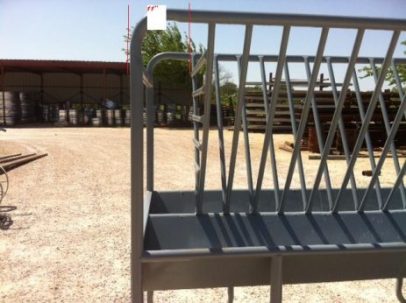

The hay rack ends approximately 11 inches from each end of the feeding trough as shown below and the ends of the rack are visible here.

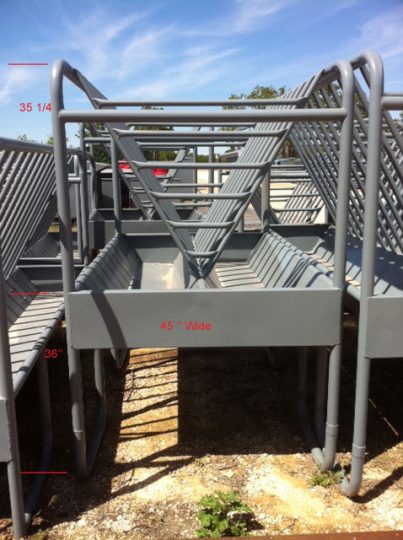

The picture below outlines the dimensions of the feeder and shows the split trough and end rails of the hay rack itself.

Barn World is proud to have a large selection of horse hay feeders that will fit almost any budget and operations.  If you have a large group of unsupervised rambunctious equine friends or just a couple more 'refined' animals, we have a feeder for you!

Rack and Trough Combination Horse Hay Feeder Description

The Rack and Trough Combination Horse Hay Feeder is designed to revolutionize your equine feeding routine. This feeder offers a host of benefits that cater to both your horses' health and your convenience.

The key feature of this feeder is its innovative design, combining a rack above with a feed pan below. This setup ensures that hay is caught by the feed pan as your horses eat, minimizing waste and keeping the feeding area tidy. Say goodbye to scattered hay and hello to efficient feeding!

But that's not all—our feeder goes beyond just hay containment. The feed pan beneath the rack serves as a versatile platform for adding green and nutritional supplements. Easily customize your horses' diet by placing supplements directly into the pan, ensuring they receive the essential nutrients they need for optimal health and performance.

Highlighted Benefits:

• Waste Reduction: The design prevents hay from falling to the ground, reducing waste and saving you money on feed costs.
• Clean Feeding Area: Say goodbye to messy feeding areas with hay scattered everywhere. The feed pan keeps everything neat and organized.
• Easy Supplementation: Add green and nutritional supplements directly to the pan for easy feeding customization.
• Healthier Horses: By minimizing waste and ensuring proper supplementation, your horses can enjoy a balanced diet for overall health and well-being.
• Convenience: Simplify your feeding routine with a feeder that's designed for efficiency and ease of use.

Get a combo feeder for the ease of use and waste-saving design. Call, chat or email for a quote today!
