Please call or email Sales@BarnWorld.com for a quote with shipping right to your address. For extremely heavy equipment, this eight-foot-long (across-the-road) cattle guard has a U-54 rating that allows it to carry an impressive 25 tons per axle. Cattle grids rated at this extreme load-carrying capacity are overbuilt for use on public roadways and are usually used for off-highway work such as oil fields or logging operations. It's available with wings, foundations, and hinged clean-out sections as well. See all of our flat top rail highway-rated cattle guards! The top view of the cattle guard shows the parallel rails running across the road with the I and C channels supporting underneath. This typical design is the industry standard and the U-54 is over-engineered to carry 25 tons/axle.

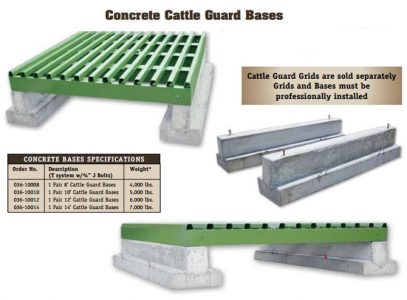

These precast concrete foundations can ship with the steel grids at a very economical rate. Although they do weigh a lot, they can ship on the same trailer as the guards for fairly economical rates. When they arrive on site, they are simply lowered into place, back-filled, and are set for installation. The grid itself is designed to fit directly on the anchor bolts already in the footings so it can be bolted down to prevent any kind of movement. It creates a solid crossing for all types of vehicles. Cattle Guard and Foundations
A smart cow will figure out that they can just 'step around' the fence post where it meets up with the grid and bypass the barrier altogether. The wings are designed to allow the fence line to attach to the guard so livestock can't just step around. Below is a picture of the wings in action. The wing is a two-piece fence-line to cattle guard connection. The wing is a steel, powder-coated triangular piece that is held up and in place by the post. The fence can then be attached directly to the post to complete the connection as shown below:
See all of our Flat Top Rail Cattle Guards - click here!
Cattle Guard Options
Heavy-duty Cattle Grid Specifications
Pictures of the Cattle Grids
Cattle Grid Footings

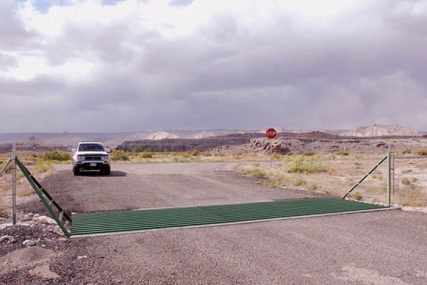

Trucks Crossing Cattle Grids
Wings for Cattle Grids
Cattle Guard Wing Detail
Cattle Guard - U54 - 8'
See pictures and descriptions below.
This product does not ship free
These cattle crossings are over-built and designed for off-highway equipment and operations. To compare, the typical DOT requirement for public roadways is the HS-20 Cattle Guard, rated at 16 tons per axle. These U-54 ratings are engineered to carry 25 tons per axle and are used exclusively for specific operations requiring extremely heavy use.
