These slide valves are designed to attach to the Collars (click here) and allow for manual control of the release of grain from your bin. They are shown here already attached, but an order here includes just the white portion, which is the slide valve itself. See all of our Poly Feed Bin Attachments by clicking here! The slide valve has a stop on it so it won't slide completely out of the frame, but it does not have a mechanism for locking it shut. Click here for the Poly Feed Bins See more pictures and details below Please note that because the slide is easily operated by pulling on the slide itself, the metal handle is not necessary or included with the valves. The slide valve pictured above bolts directly to the collars which transition the round shape at the bottom of your grain bin to the rectangular slide valve used for dispensing. Below is a picture of the valve coupled with collars cut at different angles to ease the controlled release of feed from the bin. Slide Valve on a Horizontal Collar: This combination is very popular when manually filling buckets. It is a straightforward operation: simply pull the slide valve open to the desired flow rate and stop with ease by sliding the gate closed again. Slide Valve on 30-degree Collar: This setup is for a 30-degree release angle from the grain bin. The angle allows for easier manual pulling of the valve without having to bend over as much as on the horizontal valve. If attaching an auger boot unloader to the bottom of the valve, the discharge end of the auger will be higher off the ground. Great for unloading into trailers or other vehicles for transportation. The valve opening measures 10 7/8” x 6 7/8” ID on the rectangular section that goes over the collar
Slide Valve on a 45-degree Collar: Using the 45-degree collar with the slide valve allows for the highest auger discharge height and is also easy to pull open the slide valve itself without having to bend over as much as the lower angled valves require.
Below is a picture of a slide valve mounted to a 30° collar at the bottom of the feed bin. The auger boot is attached to the bottom of the slide valve.

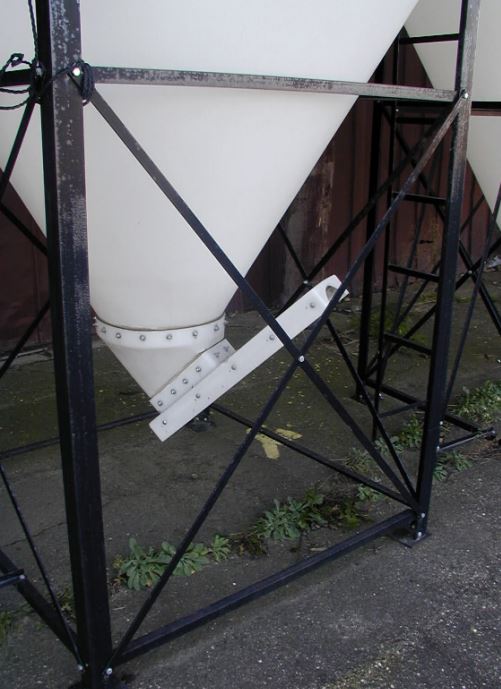

This picture illustrates a slide valve 45° mounted to the bottom of the feed bin. An auger boot may be attached and would allow for a very high discharge height. The slide valves are available at three separate angles. The horizontal is best for manually filling buckets directly underneath the bin as it provides the largest ground clearance possible. The 30° angle collar and slide valve are typical when using an auger to unload the feed bin. The 45° is very popular for either manual operation or when an extremely high auger discharge height is necessary for a short or confined area. Please note that the slide valves are not interchangeable on the various boots. Each slide valve is designed to fit the specific collar designated by the angle of the collar.
Slide Valves

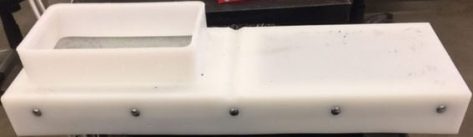

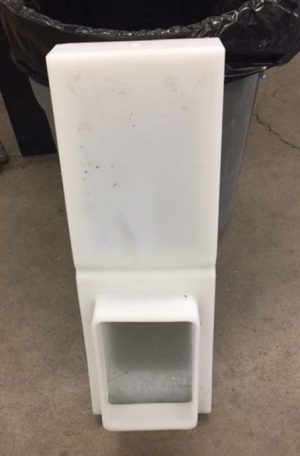

The Slide Valve
Slide Valves Installed on the Collar

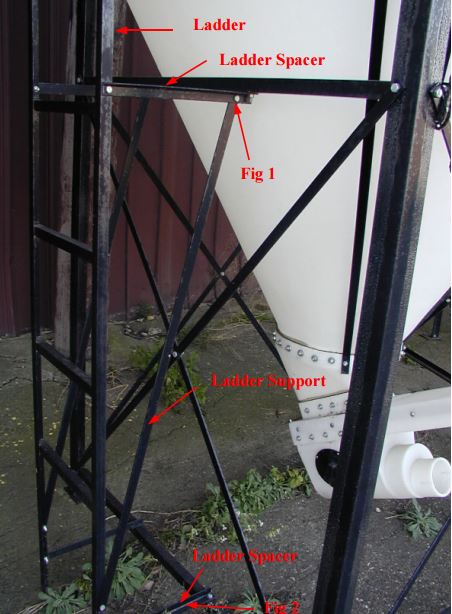

Pictures of the Collars and Slide-Valves Mounted to the Grain Bin
Poly Grain Bin Slide Valve Installed on Collar
Review of the slide valve and collar combinations

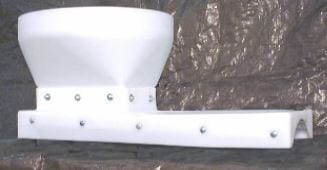

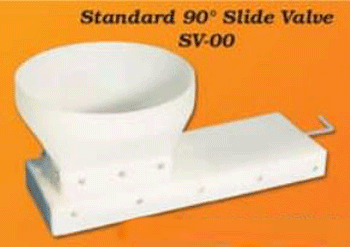

Slide Valve mounted on horizontal boot

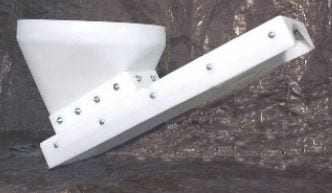

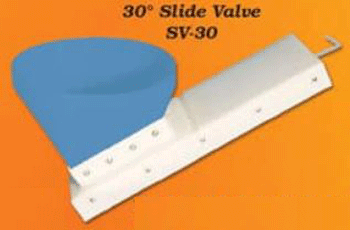

Slide Valve mounted on a 30-degree boot

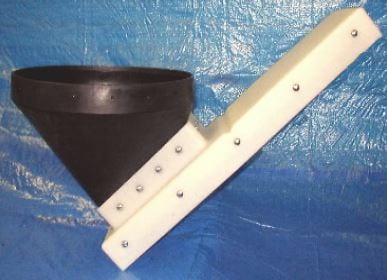

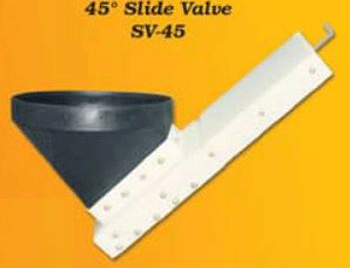

Slide Valve with 45-degree grain boot

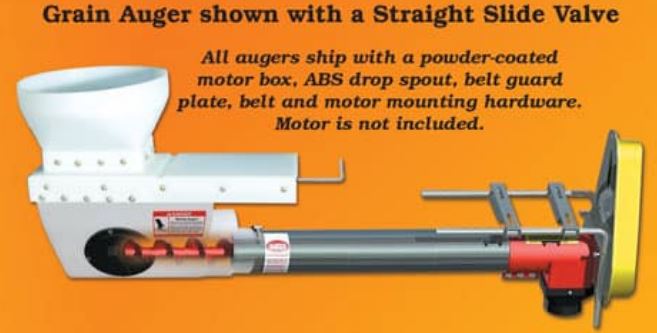

Slide Valve with Grain Bin Auger Attachment
Slide Valves For Poly Bins
This product does not ship free
Please call, chat below, or email for a quote with shipping today!
Metal Handle No Longer Used
Metal Handle No Longer Used
Metal Handle No Longer Used
Metal Handle No Longer Used
The slide valve is a manually controlled valve used for dispensing grain from a feed bin. The handle operates a plate that slides through the guides and directly under the collar or boot where the grain collects. Pulling it open allows the grain to flow past the valve and be dispensed directly beneath it. It is easy to control the rate of flow by moving the valve out for a faster rate and sliding it back to slow or stop the flow.
Each of the pictures below illustrates a different available angle for the collar and slide valve when combined. It is the boot/collar that creates the auger angle coming out from below your bin, not the slide valve itself.
