Animal Scale - 24 inches wide

Please email Sales@BarnWorld.com or call us anytime for a quote with shipping to your farm today!

---

Portable Animal Scale for Hog, Sheep, and Goat Weighing

Designed for high-volume operations, the Portable Animal Scale from Barn World is ideal for weighing pigs, sheep, goats, and other livestock with unmatched accuracy. With its wide, stable platform and customizable features, this scale is perfect for both commercial use and livestock shows. The scale is built to provide a calm and confined environment for animals, ensuring stress-free weighing while delivering precise results. Whether you are weighing market hogs, show pigs, or measuring livestock growth for performance trials, this portable scale provides the reliability and ease of use you need.

Key Features and Specifications:

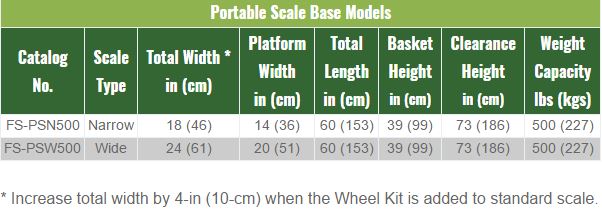

• Platform Width: 20" (expandable to 24" with wheel kit)
• Total Length: 60"
• Basket Height: 39" (total clearance of 73")
• Capacity: Weighs up to 500 lbs (227 kg)
• Weighing Animals: Perfect for pigs, sheep, goats, and other small livestock
• Meter Options: Choose from an electric meter or a digital display
• Gate Options: Standard side-opening gates (optional center-opening gates available)
• Wheel Kit: Includes wheels, handles, and fasteners for easy mobility
• Customizable Design: Add a basket-top closure kit and center-opening gates for increased functionality
• Additional Accessories: Available with digital indicators (C100 Economical or ER500R high-performance digital display)

Detailed Description:

This portable animal scale offers a convenient solution for accurate livestock weighing. Whether used on the farm or at livestock shows, it helps producers efficiently measure animals' weight, which is crucial for growth monitoring, performance trials, and fair competitions. The modular weigh-arm system can be mounted at the center or moved to the side, allowing for full access to the livestock for medical treatments or ultrasound measurements. The scale is equipped with precision levers that reduce sway and bounce, ensuring that weight readings are stable and consistent, while being completely cable-free for ease of use.

For added flexibility, the scale includes side-opening gates and a wheel kit, making it easy to transport the unit across different areas of your operation. The scale’s platform measures 20 inches in width and can accommodate animals up to 500 lbs. You can customize your scale further by selecting from various digital displays, including the affordable C100 Economical Digital Display, which offers animal average functionality and direct readout modes. For more advanced use, the ER500R Electronic Display connects to your computer for automated weight tracking and reporting.

Whether you are managing a commercial hog operation, participating in a livestock show, or conducting performance trials, the Osborne ACCU-ARM® Portable Scale offers an efficient, durable, and user-friendly solution. Its "rock-solid" construction, combined with an easy-to-use system, makes weighing stress-free for both the animals and their handlers. Barn World provides a range of customization options to tailor this scale to your specific needs, ensuring the best fit for your operation.

Scale Readout Choices - Electric or Digital

This large scale is available with many features and can be customized to your needs. For other types of scales, you may click the following link to see all of our animal scales.

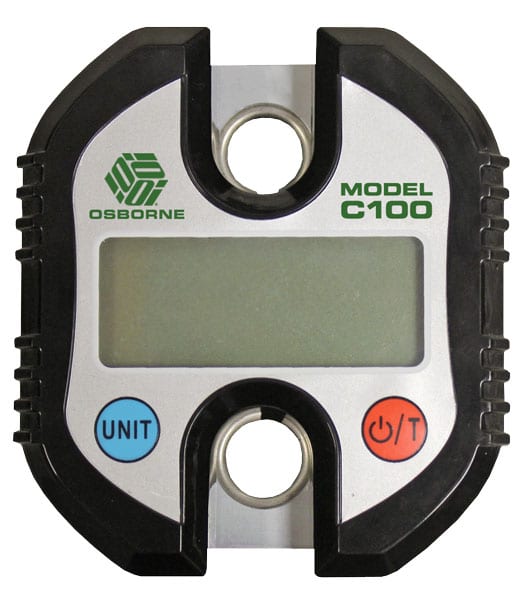

The C100 Economical Digital Display has three available functions that are accessed by pressing and holding the blue unit button for one (1) second:

AAF (Animal Average Function): This is the default setting. AAF detects the presence of an animal on the scale and then collects weight data over five (5) seconds. The data is filtered and averaged, and the average weight is displayed. To re-weigh an animal while on the scale, press the red Power/Tare button while the previous average weight is shown on the display. After unloading the animal, press the red Power/Tare button to reset the display for the next animal.

dIr (Direct Readout): This setting reads the direct weight of the display.

SCr (Scaled Readout): This setting provides an instant readout for weighing with the scale.

Note: Requires (2) AAA batteries that are not included with the display.

Indicator

• The ER500R Electronic Display: This high-performance digital indicator has an RS-232 connection so it can communicate electronically with your computer.  It reads and displays weight totals in pounds or kilograms and has many other useful functions, including Auto-zero for continuous re-zeroing and Quick Freeze for displaying a valid reading until the scale is unloaded. Osborne offers engineering and programming services to help you set it up. You will get true plug-and-play convenience with our optional, economical Software Package. It even includes the cable you need to transfer weights directly from the E500R to your PC for spreadsheets, reports, and graphs.

• Wheel Kit Option

  The wheel kit option lets one scale work in several locations. Handles lower wheels and makes light work of moving these heavy-duty scales

• Gate Options

  Center-opening gates can be operated from either end of the scale, while the side-opening gates swing both left and right

Whether you are weighing market hogs to capture packer premiums or weighing show pigs, goats, or lambs, the Osborne ACCU-ARM® Portable Scale offers the most "rock-solid" portable weighing system available. The solid, animal-friendly scale uses precision levers to reduce sway and bounce and is completely cable-free! With Osborne, the entire weighing operation is more efficient and less stressful—for both you and your livestock!

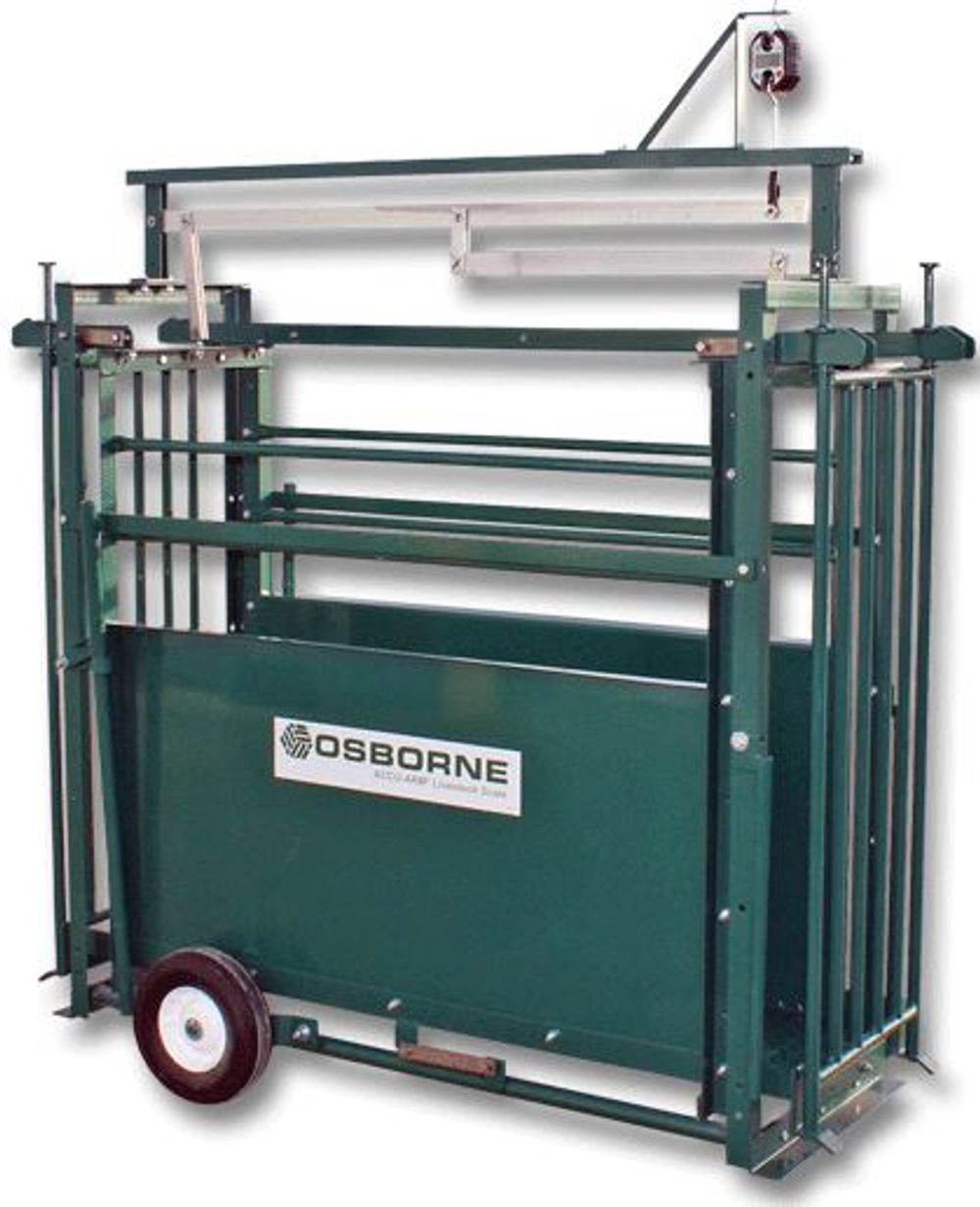

This scale features standard side panels, side-opening gates, a wheel kit for easy transportation, and a weighing meter with a digital read-out. The scale platform is 20 in. (51 cm) wide and the scale weighs animals up to 500 lbs. (227 kg).

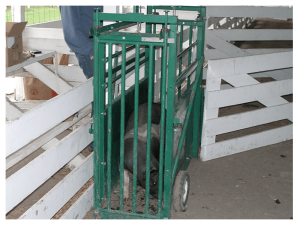

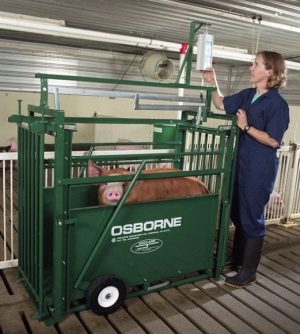

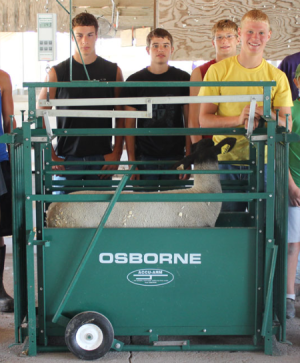

Pictures of the Hog Scale (Sheep Scale)

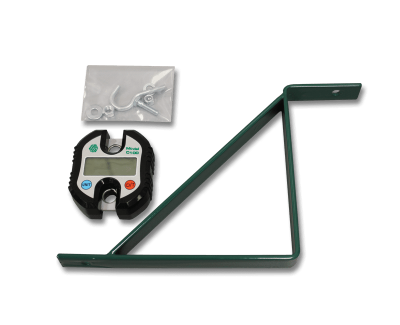

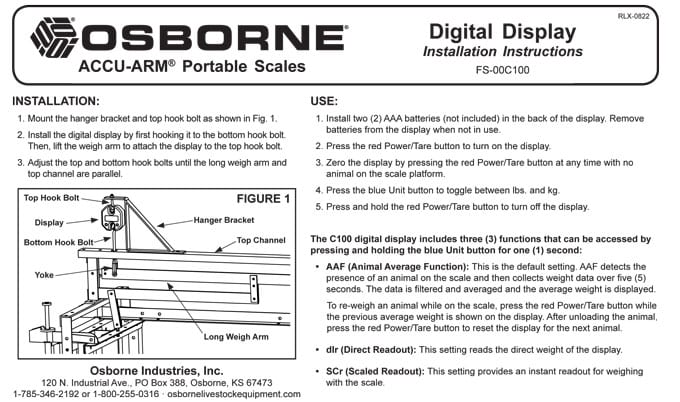

Description of the C100 Digital Display

Durable and Accurate Weighing with Osborne's ACCU-ARM Animal Scale

Osborne’s ACCU-ARM Animal Scale is designed to provide reliable and accurate livestock weights with minimal stress for both animals and handlers. Ideal for pigs, sheep, and goats, this scale is widely used in commercial operations, show circuits, and research facilities for its dependable performance and ease of use. Its innovative design features a precision lever system that minimizes sway and bounce, helping ensure consistent and accurate readings every time, without the hassle of cables.

Modular Design for Easy Access and Veterinary Use

The exclusive modular weigh-arm system can be mounted at the center or moved to the side to allow better access to livestock for treatments, vaccinations, or ultrasound measurements. This flexibility makes it a practical choice for producers who need more than just a weighing station. Built to last, the scale offers long-term durability, even in high-volume or rugged farm environments.

Customizable Scale for Your Livestock Operation

Each scale can be custom-configured to meet the specific needs of your ranch or operation. Whether you’re tracking weight for growth monitoring, preparing animals for market, or recording entries for livestock shows, this scale adapts to your workflow. Optional gates, wheel kits, and digital meters are available to enhance mobility, functionality, and ease of use.

Trusted by Ranchers, 4-H, and FFA Programs

Osborne scales have been a trusted tool for decades, used by farmers and ranchers, youth programs, and show exhibitors nationwide. From market hogs to show lambs and club goats, the ACCU-ARM Portable Animal Scale helps ensure animals are on track with their weight goals, keeping your operation efficient and your livestock healthy.
