Our New Livestock Equipment Promotional Video

Check out our new video for Barn World. We are here to answer all of your questions about cattle guards, cattle scales, and livestock supplies!

Cattle Guards

Cattle guards are the best solution for safely containing livestock without the use of gates. A properly installed cattle guard allows easy access through fence lines while keeping livestock secure.

We offer both flat top rails which is more comfortable for high speed areas, as well as the round top rails for maximum determinant. For heavy loads, we carry AASHTO ratings of H15, H20, U54 and U80. There’s also the more economical designs for private driveway use.

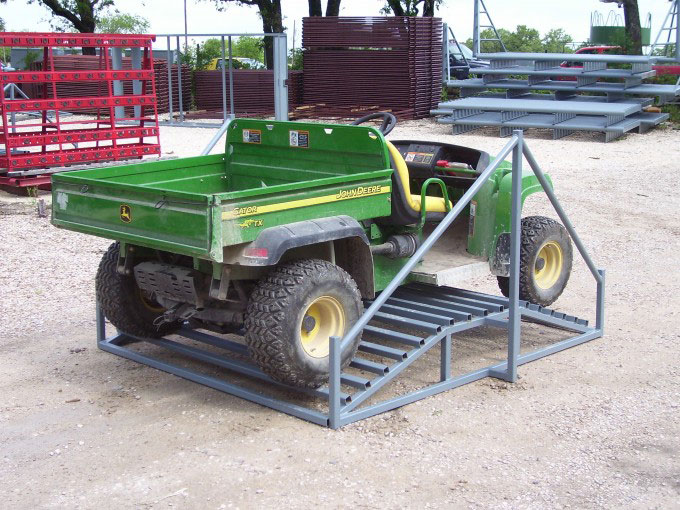

cattle guards sitting on concrete foundations atv cattle guard crossing round top rail cattle guard

Please let us know the needs of your project and we’ll be more than happy to forward a quote for your review.



Feeders

We have a large selection of hay feeders, hog feeders, mineral feeders and everything from creep feeders to feed bunks. Making sure your animals have the necessary nutrients for healthy weight gains is essential and a proper feeder will keep them growing.

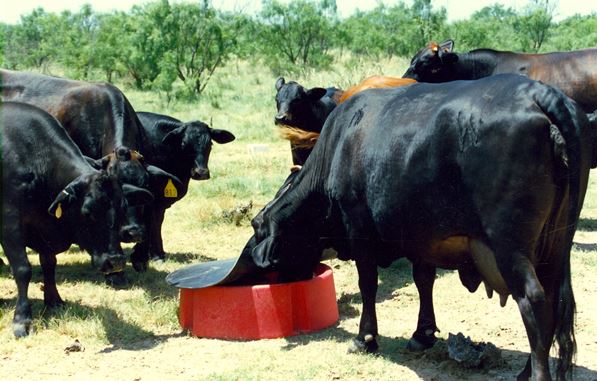

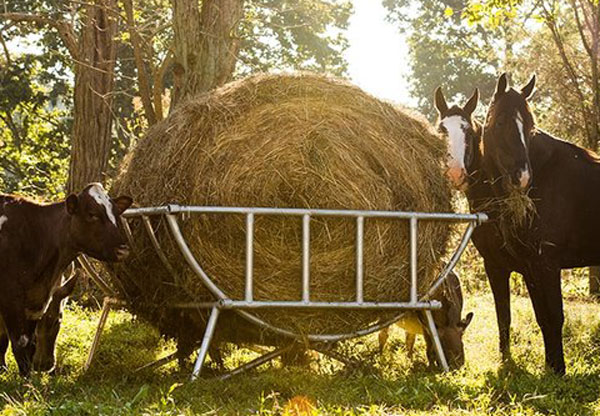

cattle hay feeder horse hay feeder pig and hog feeders cows eating from a mineral feeder



Farm and Ranch Supplies

We have a large selection of grain bins, sheepskin settle pads, farrier supplies and livestock working equipment. Please take a look at all of that we have the offer and let us know if we can answer any questions or forward a quote for your review.

Promotional Video

Below is a short promotional video that we’re working on. It’s a test of a new production system that we’ll use in the future.







Facebooktwitteryoutube

Cattle Guards are not effective with all animals!

gray round top pipe cattle guard

As we’ve stated in previous posts, cattle guards are not designed as a deterrent for all animals or even all livestock. The rounded surface of the top rails prevent the flat hoof of large animals from being able to balance while standing on it. The instability prevents them from putting weight on their hooves and the uncomfortable balancing act prevents them from crossing.

Some smaller flat-hoofed animals such as goat and even some sheep are able to get their smaller hooves to balance on the top ridge and can ‘tiptoe’ across just the tops of the rails. The same holds true for soft pad on crossing feet. Dogs are able to learn to conquer the barrier and cats have no problems at all.

Can Horses Cross Cattle Guards?

A lot of people use cattle guards to deter horses but we don’t recommend it. A horse typically won’t both with unstable footing and will usually shy away from the unusual and unstable footing.

HOWEVER, if the proper incentive or more commonly they get scared or confused, they could accidentally stumble onto the barrier.  Their smaller hoofs can sometimes slide down between the top rails until they hit the bottom of the vault. This exposes their legs to the steel rails and in a struggle to get out, they could break their own leg. Exposing a horse to this possible catastrophe is not recommended.

While they can be an effective barrier for many animals, they are designed for cattle and work best with livestock. Other animals can be too sure-footed, clever or use their soft pads without too much trouble.

Humans are not as well adapted to crossing as you might think. It can be come second nature to cross round top rails but sometimes it takes a bit of practice.

Goats, sheep and other smaller hoofed or even sure-footed animals are also able to make their way across.  A metal swing gate is the best way to keep horses, small hooves and soft-padded creatures from crossing.

farm gate in yellow



Cattle Guard Designs

The traditional construction uses round top rails for the most effective deterrent however, this also creates the roughest ride for crossing vehicles. There is another design that is most prominent for high-speed highway use call the flat top rail.

cattle guard with flat top rails and green paint

This configuration uses an almost square railing welded to the beams below to create a smoother crossing for vehicles. The gap between the rails is slightly larger than the round and it is still a very effective barrier.



They’re available in higher load carrying ratings than what’s required for public roadways (16 tons per axle) as shown below:

Cattle Guard Load Ratings
H-15 (12 tons per axle)
H-20 (16 tons per axle)
U-54 (25 tons per axle)
U-80 (30 tons per axle)

They’re also available to ship with pre-cast concrete footing and wings.cattle guard mounted to concrete foundations These deliveries are very heavy and require that the receiver provide a mechanical means of unloading as the delivery drivers don’t have a way of removing them for a trailer.

It is extremely convenient to have the foundations arrive with the cattle guards. You won’t have to pour your own footings on site!  The concrete has j-bolts already embedded to fit the grid when set on top so if your site is already prepared, they can be set in place, bolted down and back-filled all in one day!

Please be sure to consult a local contractor who is familiar with the site conditions like freezing levels, drainage, building codes etc. for a long-lasting installation.

If we can help answer and questions or provide any guidance for your particular project, please don’t hesitate to ask. We’ll be happy to answer any questions and prepare a quote with shipping right to your site.

Don’t forget Barn World has a large selection of products for all your livestock supplies including everything from hay feeders to grain bins.
