Radiant Floor Heat with Crete-Heat Floor Panels and DIY Heaters
Installing a radiant heating system in a new slab doesn’t have to be complicated or expensive. These systems provide very economical and efficient heat to large areas in a quiet and cost-effective manner.
PRICE REDUCED !! – You simply cannot afford to install radiant floor heating without this product!
You certainly cannot afford the energy lost into the ground!
Radiant Floor Insulated Panels
These 2′ x 4′ panels are available in 1″, 2″ and 3″ thickness for varying R-values. Each panel has a vapor barrier and the edges overlap to interlock together for ease of installation. The overlaps also minimize movement when installing the PEX and pouring the concrete.

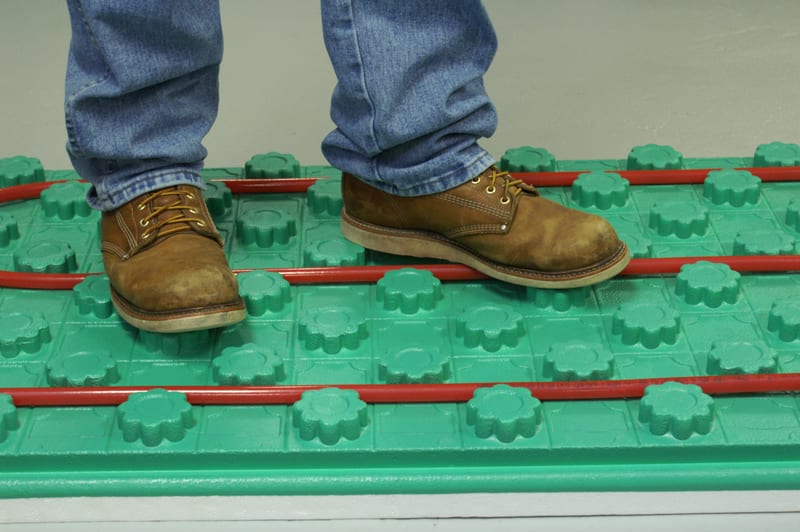

The knobs on each panel hold the PEX securely in place and allow you to walk directly on them to push the PEX into place. They add approximately 7/8″ of an inch to the listed panel thickness. As and example, the 2″ panels offer 2″ of insulating thickness and the knobs add another 7/8″ on top of that for an overall thickness of 2-7/8″.
Electric Heaters for Radiant Floor Heat
CHOOSE YOUR RMS MODEL ACCORDING TO THE SPACE YOU WISH TO HEAT IN YOUR BASEMENT OR GARAGE, AND YOUR ELECTRICAL REQUIREMENTS
Square Feet | RMS Model | Loops | BTU/h |
350 to 600 | RMS-7 | 2 | 23890 |
610 to 900 | RMS-7 | 2 | 23890 |
910 to 1200 | RMS-11 | 3 | 37540 |
1210 to 1500 | RMS-11 | 4 | 37540 |
1510 to 1800 | RMS-11 | 5 | 37540 |
ELECTRIC SERVICE REQUIREMENTS | |||
MODEL | AC VOLTAGE | HEATER AMPS | BREAKER |
RMS-7 | 220/240 | 29 | 40 AMPS |
RMS-11 | 220/240 | 46 | 60 AMPS |
HAVE AREAS LARGER THAN 1800 SQUARE FEET? NO PROBLEM
Areas larger than 1800 square feet should be subdivided and served with two or more RMS units sized for each area.
EXAMPLE #1: A 2500 square foot basement could be treated as two 1250 square foot areas each served by one RMS11 having 4 loops each.
EXAMPLE #2: Two temperature zones are desired in the 2500 square foot basement, one 760 square foot zone could be served by one RMS7 with 2 300 foot loops, and the remaining 1760 square foot area served by one RMS11 with 5 300 foot loops. (Thermal isolation is required)
300’ Loop Kit – PEX Radiant Floor Tubing Kit
PEX Oxygen barrier tubing installs with Radiant Heat system on 2” insulation foam board. This Radiant Made Simple Radiant Floor Tubing Kit works with Radiant Made Simple Radiant Heat systems. Requires .92 gallons of RV antifreeze per 100 feet of tubing. 300′ X 1/2″ PEX Oxygen barrier tubing installs with Radiant Heat system on insulating foam board. Tube bends help make the transition from tubing in concrete to the manifolds. Allow 1 linear foot of tubing for 1 square foot of space to be heated. Order a 300’ Loop Kit per 300 square feet of space to be heated.
Radiant Heat Floor Panel Benefits
- Cuts installation time by as much as 2/3 – no stapling and nicking PEX and no extra vapor barrier to buy and install
- The knows hold the PEX tubing securely in place
- There are multiple R-ratings available
- UV Protected Packaging for outdoor storage
Ready For Concrete
The Crete-HeatTM Insulated Floor Panel System, is an easily assembled modular board insulation, vapor barrier, and radiant tube holding grid that allows for simplified installation of hydronic radiant floor heating systems in basements, garages, main floor slab on grade and above grade installations where concrete or gypcrete is normally used. For basements, a ‘light weight’ concrete (sand instead of pea gravel) may be used in 1-1/2″ thickness. Uses 1/2″ tubing. Total thickness is 1-7/8″
Crete-Heat Insulated Floor Panel System – 1″ Black Bag
This Product is SOLD BY THE BAG – 12 PIECES PER BAG
The 1″ thick panels ship in a black bag and each bag covers 96 Sq Ft. To determine the number of bags needed, divide your total square footage by 96 and round up to the next whole number.
Crete-Heat Insulated Floor Panel System – 2″ Green Bag
- Cuts radiant system install time by as much as 2/3
- Designed to hold tube securely in place with wider fasteners
- 2 sizes are available for both new construction and retrofitting existing buildings
- UV Protected Packaging for outdoor storage
Ready For Concrete
The Crete-Heat Insulated Floor Panel System, is an easily assembled modular board insulation, vapor barrier, and radiant tube holding grid that allows for simplified installation of hydronic radiant floor heating systems in basements, and garages, main floor slab on grade and above grade installations where concrete or gypcrete is normally used. The Crete-Heat Insulated Floor Panel System is 2 7/8″ overall in thickness, with 2″ of solid EPS foam providing an R-10. The panel board size is 25″ x 49″ and the effective area is 24″ x 48″.
Our retrofit of over grade panel provides 2 1/8″ overall in thickness, with 1″ of solid EPS foam providing and R-6 with a 23 dB sound reduction knob on the lower surface. Each interlocking panel covers up to 8 square feet with fasteners for 1/2″ and 5/8″ radiant tubing. A 10-mil polystyrene film provides the vapor barrier.
This Product is SOLD BY THE BAG – 8 PIECES PER BAG
EACH 2″ Green Bag covers 64 Sq Ft. Determine your total square footage and divide by 64 for the total BAGS needed.
Radiant Floor Heaters
These Electric Boilers provide an energy-efficient, Do-It-Yourself solution, for heating a single zone: basements, garages, home additions, greenhouse or remodeling projects. Energy efficiency approaches 99%!
RMS-7 – Radiant Made Simple Radiant Heat System – 7 kW, 23,890 BTU Electric Heater, 240 Volts A/C, 40 Amp. | |
Radiant Made Simple Radiant Heat Systems provides an energy-efficient, Do-It-Yourself solution, for heating a single zone: basements, garages, home additions, greenhouse or remodeling projects. This 230V, 40 Amp product provides everything you need to install radiant floor heating. Efficiency approaches 99%. |
For help or a quote with shipping to your address, please contact Barn World today!
Barn World Customer Service – (720) 238-2190 – Sales@BarnWorld.com
