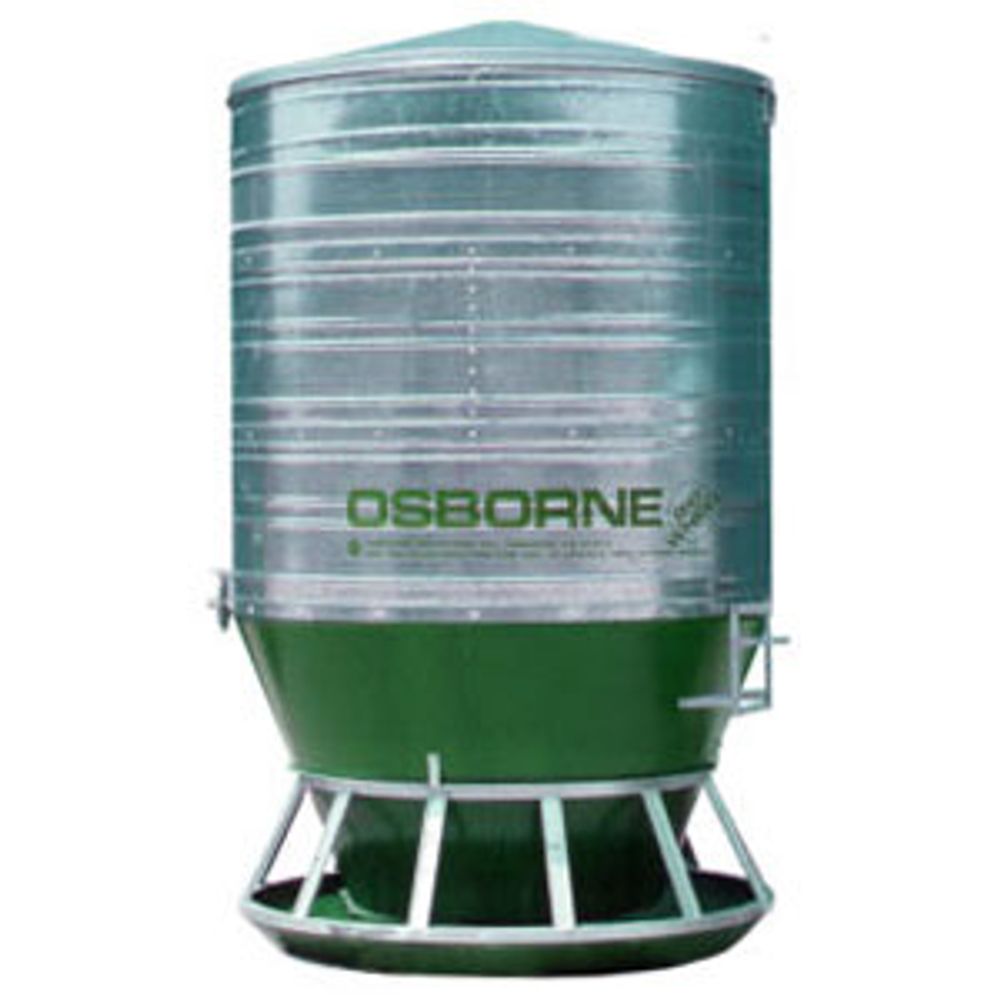

Outdoor Hog Feeder
This large, outdoor hog feeder is built to accommodate the needs of your swine operation, offering a large-capacity solution designed to feed up to 90 growing or finishing pigs.
Key Features:
- On-Demand Feeding: This feeder only dispenses food when the sweep paddles are activated, preventing feed waste and minimizing losses.
- Trough Cleaning: The integrated sweep paddles not only trigger feeding but also clean the trough as they are turned, ensuring a hygienic feeding environment for your pigs.
- Standard Accessories: Comes equipped with an inspection step and handgrip for convenient maintenance and handling.
Hog Feeder Details:
- Feed Capacity: 85 bushels
- Serves: Up to 90 finishing pigs
- Trough Diameter: 55.5 inches
- Height: 97 inches (with optional lid)
- Feeder Weight: 354 pounds, Lid Weight: 27 pounds
- Feeder lids available for separate purchase
- Skids add nearly 1-1/2" to the overall height
Description

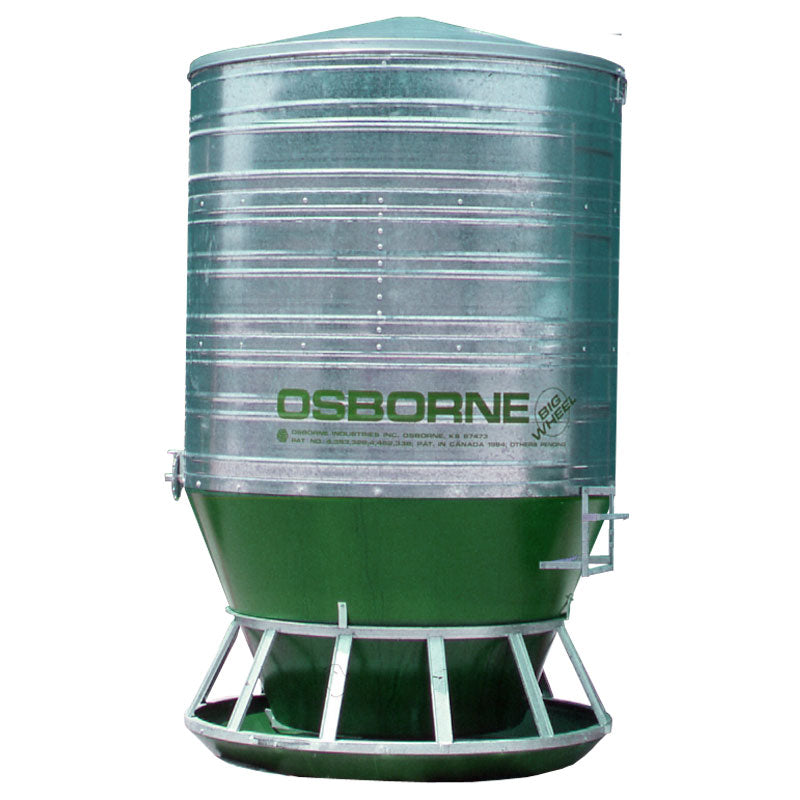

The Osborne RO85-Series Big Wheel Bulk Finishing Feeder provides fresh feed on demand for finishing pigs and hogs. The patented mechanical-flow feed delivery means pigs’ interaction with the feeder – not gravity – determines feed flow. This original Osborne-engineered design improves feed-to-gain ratios while almost eliminating all waste. The round, self-cleaning trough provides pigs with a less stressful eating experience and 360-degree access to feed. Plugging of food is not an issue, even after heavy rains, because the self-cleaning action of the feeder always keeps the feed flowing.
Big Wheel Feeders are manufactured with reinforced fiberglass hoppers and troughs and hot-dipped galvanized steel parts. The feeder ships on a pallet and is unassembled to help keep shipping costs down.
Features Benefits
- Fresh feed is always available, but only on demand to eliminate waste!
- The self-cleaning trough has no corners so excess food won't accumulate
- The poly construction is rust-free, durable, and designed for years of useful life
- The rugged polyethylene is easy to clean and sanitary
- Mechanical feed flow reduces feed waste and creates larger profits than gravity flow feeders
Feeder Specifications
- Feed Capacity - 85 bushels, approximately 2 tons*!
- Hog Capacity: Up to 90 animals
- Hog Weights: 50 pounds all the way up to market weights
- Height 97 inches
- The trough diameter is 55.5 inches
* Approximate feed capacity based on feed density of 42 lbs. per cubic foot

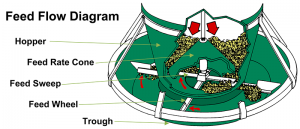

Hog Feeder On-Demand Feeding System Diagram
Hog Feeder Review
The large outdoor hog feeders from Osborne are designed for large operations and provide as minimal maintenance and care as possible. The self-cleaning troughs only dispense feed when called to eliminate wasted pig food, and the poly taper section and troughs keep rust from appearing. The feeder is also available with galvanized skids that keep the trough and feeder level for optimal operation and allow you to move it easily from pasture to pasture if necessary. They can also be used to anchor the feeder if desired.
The long-lasting and extremely durable outdoor hog feeder from Osborne is a staple in the industry and is used throughout the country in large operations daily. They stand up to the elements and save on feed, maximizing profits.
Hog Feeder Skid
Hog Feeder Sizing Chart
Osborne offers many different types of feeders for both pigs and hogs. Check the diagram below for a nursery through finishing feeder for your operation today.
Approximate feed capacity based on feed density of 42 lbs. per cubic foot.
| BU | LBS | Tons |
| 45 | 2,400 | 1.2 |
| 65 | 3,400 | 1.7 |
| 85 | 4,400 | 2.2 |
| 105 | 5,400 | 2.7 |
| Approximate feed capacity based on feed density of 42 lbs. per cubic foot | ||
Why Use A Large Capacity Hog Feeder
As a hog farmer with a bustling operation, my days are filled with the rhythmic routine of tending to my beloved swine. Each morning, as the sun begins its ascent over the horizon, I make my way to the heart of our farmyard, where our pride and joy—our pigs—await their daily sustenance. And at the center of it all stands our trusted companion: the large 85-bushel outdoor hog feeder.
From the moment we introduced this behemoth feeder into our operation, our lives were transformed. No longer were we burdened with the constant worry of refilling feed troughs multiple times a day. With its immense capacity, the feeder became a reliable source of nourishment for our growing herd of swine, ensuring that food was always available whenever they needed it.
But the advantages of this feeder extend far beyond its sheer size. The innovative design of the Osborne self-cleaning trough paddle sweep proved to be a game-changer for us. Gone were the days of manually scrubbing troughs to remove stubborn residue and debris. Instead, the integrated paddle sweep effortlessly cleaned the trough with each rotation, maintaining a pristine feeding environment for our pigs.
Not only did this design save us precious time and labor, but it also minimized the risk of disease transmission among our animals. A clean feeding environment meant healthier pigs and reduced veterinary costs—a win-win situation for both our farm and our beloved swine.
With the Osborne outdoor hog feeder standing tall in our farmyard, we've been able to focus our attention on other aspects of our operation, confident in the knowledge that our pigs are well-fed and cared for. It's more than just a feeder—it's a symbol of efficiency, innovation, and the unwavering dedication we have to our animals and our craft. And for that, we're endlessly grateful.
Parts Diagram
Hog Feeder Lid Assembly Diagram
Fence Line Adaptor

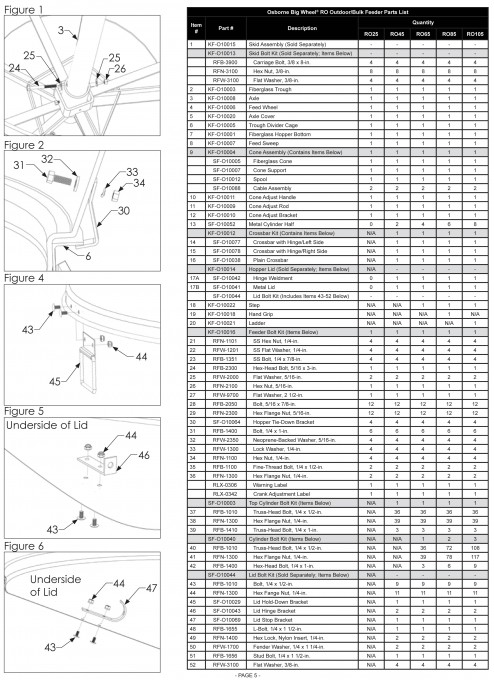

Parts List
