A pickup truck crossing a cattle guard.
A cattle guard resting on concrete foundations

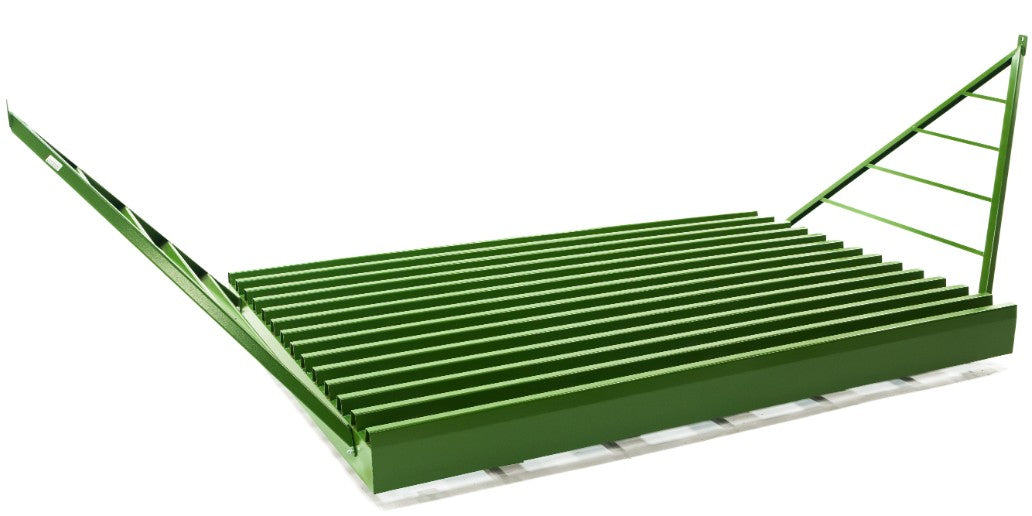

A cattle guard with wings attached to each side.

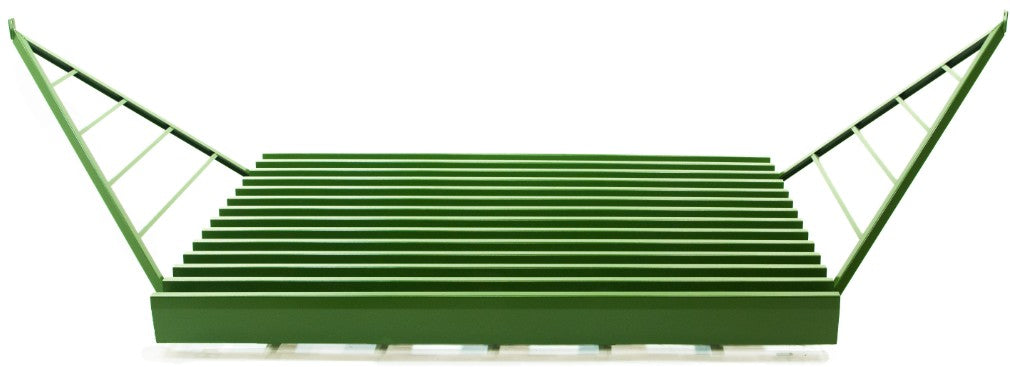

A cattle guard entrance with wings attached.
Roll over image to zoom in Click on image to zoom
A pickup truck crossing a cattle guard.A cattle guard resting on concrete foundationsA cattle guard with wings attached to each side.A cattle guard entrance with wings attached.

Cattle Guard H15 - 10' Long

Color: Green
Size: 7.5' Deep x 10' Long - H15
Price:
$3,599.99

Engineered for strength, this H-15 cattle guard supports 12 tons per axle, providing durable performance for fully loaded semis and farm & ranch use.

Please email, call, or use the button above for a quote with shipping

Click the following links to see other flat top rail lengths and ratings, and view our entire cattle guard selection. Please let us know if we can prepare a quote with shipping to your site today.

SEE MORE PICTURES AND DETAILS BELOW

Cattle Guard Details

This rated cattle guard is designed to accommodate a per axle load of 12 tons and is built with extra support for a thirty percent increase in the load-carrying capacity for additional safety. This particular crossing measures 10 feet across (the road) and may be ordered with optional wings and concrete footings. The foundations are delivered along with the guards and eliminate the need to pour concrete upon installation. The wings will keep your livestock from stepping around where the fence line connects to the guard itself.

The 'Texas Gate' has been a simple and effective physical barrier for decades, and best of all, it works without the need to open and close a gate! The convenience offered is alone worth the installation investment. These grids are made even easier to install with the optional precast concrete footings that can be delivered to your site, eliminating the need to pour cement. Simply set them in the ground and bolt the grid down to the J-bolts already in the cement to ensure a rock-solid crossing.


This guard is made with (7), 8" C-channel beams for an incredible support system and a 12-ton PER AXLE load-carrying capacity.


Below are pictures of installations and a description of the wings and foundations. See our entire H15-rated cattle guard selection by clicking here.

Installed cattle guard

Cattle Guard
Cattle Grid Truck Crossing
semi truck crossing a cattle guard
Car Crossing Cattle Guard
car crossing a cattle guard

Cattle Guard Crossing with Wings

The wings attach to the side of the crossing and present a physical barrier so your cows can't simply walk around the connection to the fence line. The triangle section is the wing itself, and it's held up with the support post.

heavy duty cattle guards

Cattle Guard Wing and Post Detail

Here you can see the post holding up the wing for the connection to the fence, making sure the herd can't just step around the end of the barrier. You can order the Cattle Guard Wing here.

cattle guard wings


Pre-cast Concrete Foundations for Cattle Guard Installations

To make installation easier, we can deliver these precast concrete foundations with the guards to your job site. They have anchor bolts already set in concrete, so bolting and securing the grid to the foundation is as simple as lowering and bolting into place.

Precast concrete cattle guard foundations


Concrete Foundation Diagram

The concrete cattle guard footings are sold in pairs, one for each end of the installation. Click the following link to see the matching 10' cattle guard foundation for this guard.

Cattle guard foundation diagram.



You may also like

Recently viewed

Thank you for your interest in the Cattle Guards from Barn World.

The standard sizes for the flat top rail guards are 8' x 10' x 12' and 14' single spans. They come pre-drilled so you may bolt them end-to-end for longer spans.

The round top rail guards are available in even lengths from 8 to the longest single span of 20'. They also may be bolted end-to-end for longer crossing.

We do carry highway rated cattle guards (click here) that are 16 tons per axle as well as the U-80 heavy duty cattle guards as well.

Thank you for your interest. We will have a quote with shipping for your review shortly.
